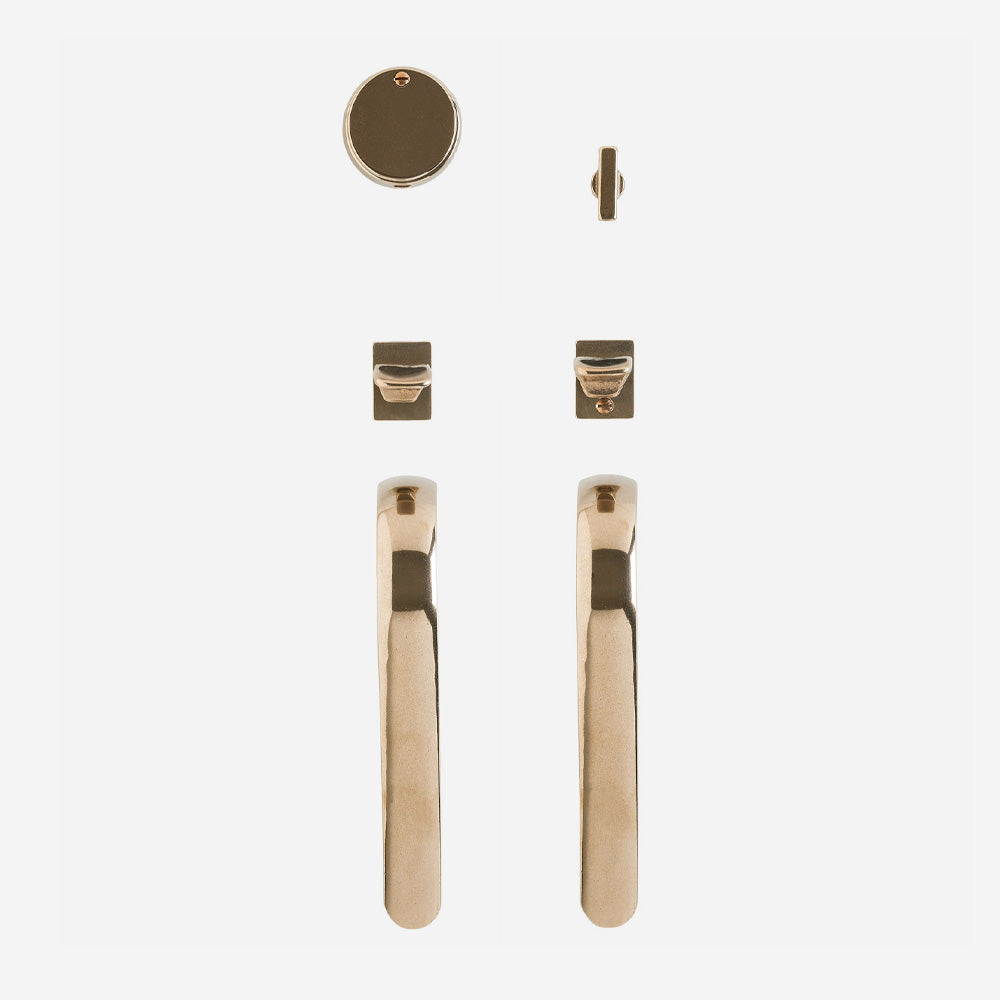

Element Entry Set
Description
Description
The Element Entry Set features a unique escutcheon-free design that is modern and minimal. Although small in size, it still delivers high-end style and function. This luxury level handleset is handmade in Idaho out of solid bronze.
This is a mortise set and will not be compatible with doors pre-drilled with 2-1/8" holes. We recommend this entry set for new doors without existing hardware prep.
Made to order. More finishes and configurations of the Element Entry Set are available by request. Contact us for more information.
Specifications
Material | Bronze |
Entry Set Type | Mortise |
Origin | USA |
Backset | Must specify. 2-1/2" or 2-3/4" |
Accommodated Door Thicknesses | 1-3/4" - 3" with mortise lock centered |
Minimum Stile Width | 2-1/2" Backset: 3-1/2" 2-3/4" Backset: 3-3/4" |
Latch Strike | Mortise |
Keys | Two Schlage 5 Pin (SC-1) keys included |
Round Cylinder Trim | 1-1/8" Diameter |
Grip Center to Center | 10" |
Grip Length | 11-1/16" |
Grip Width | 1-1/8" |
Grip Projection | 3-1/8" |
